Main Transmission

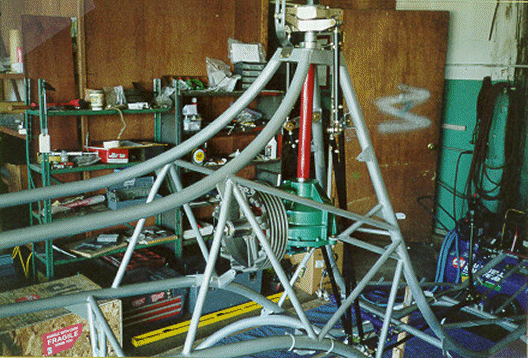

The transmission and main rotor shaft are in place. Also, the swashplate can be seen on top. The large pulley will be driven by V-belts from the engine which mounts below.
